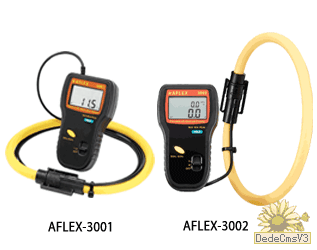

AFLEX-3001/3002可挠性交流电流钳表

特点：

• 真均方根值(true RMS)
• 电流∶3000安培
• 电压测量(仅限AFLEX 3002)
• 高速峰值(Peak)量测(30 μs)
• 最大值/最小值
• 自动关机∶30分钟

挠性感测器，与一般钩表不同，可任意穿绕障碍物，可同时缠绕多条导线，直径最大170mm

规格：

交流电流 AC Current (45~65Hz, True RMS)

范围                                    范围                                     解析度                                读值准确度

30 - 300 A                  0.00 - 300 A             0.1 A                                   1% of range

300 - 999.9 A         100.0 - 3000 A       0.1 A                                   1% of range

1000 - 3000 A         1000 - 3000 A          1 A                                         1% of range

交流电压 AC Voltage( 仅限 AFLEX 3002,45~65Hz, True RMS)

范围                                                        解析度                                             读值准确度

3 V - 600 V                                   0.1 V                                                ± 0.5% ± 5dgts

一般规格

连接头直径                                     23mm

电线直径                                           14mm

自感应器至本体之电线长度         170mm

直径                                                       约170mm

电池规格                                           2
